RELIABILITY, EXCEPTIONAL SAFETY AND OPTIMAL SPACE UTILIZATION
UL2258 HDPE INNER TANK WITH SECONDARY CONTAINEMENT
A complement to our residential steel oil tanks, this line offers additional peace of mind and trouble-free installation.
For customer service assistance please call: 1-450-521-7588
- Main features
- Primary tank made of blow-bolded high-density polyethylene (HDPE)
- Internal tank is fluorination treated for odor and chemical resistance
- Secondary containment made of galvanized steel on both sides, tightly welded and edged using state of the art manufacturing equipment
- Visual leak detector for the monitoring of the integrity of the primary tank
- Connection fittings made of cast aluminum for greater torque resistance and greater peripheral sealing
- Tanks come completely equipped from factory with all necessary installation accessories
- 2’’ NPT galvanized steel fill pipe adaptors
- Optimal space utilization
- Suited for basements with headroom as low as 60’’
- Ease in maneuverability and access through narrow doorways only 28’’ wide
- Easy carrying due to light weight and welded handles
- 30-years limited warranty
- B100 bio-fuel ready
- Optional rain cover mandatory for outdoor installation

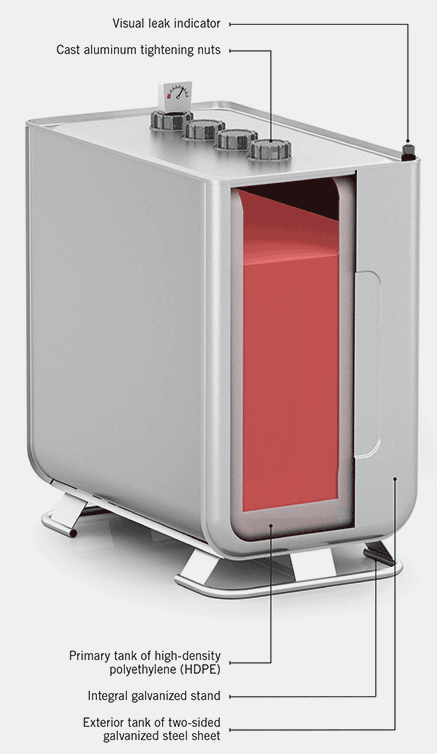

Benefits
Visual leak indicator
Cast aluminum tightening nuts
Primary tank of high-density polyethylene (HDPE)
Integral galvanized stand
Exterior tank of two-sided galvanized steel sheet
- Optional equipment
- The following oil tank installation accessories are available separatly:
Oil filter
Vent with overfill protection alarm
Oil tank shut off valve
Oil level gauge
Duplex bushings
Tube adaptors
Rain cover
- The following oil tank installation accessories are available separatly:
- Industry standards
- Fabricated in accordance with UL2258 standard

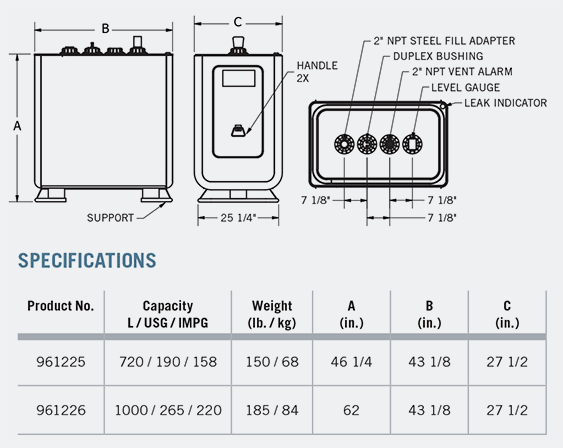

- Technical information
